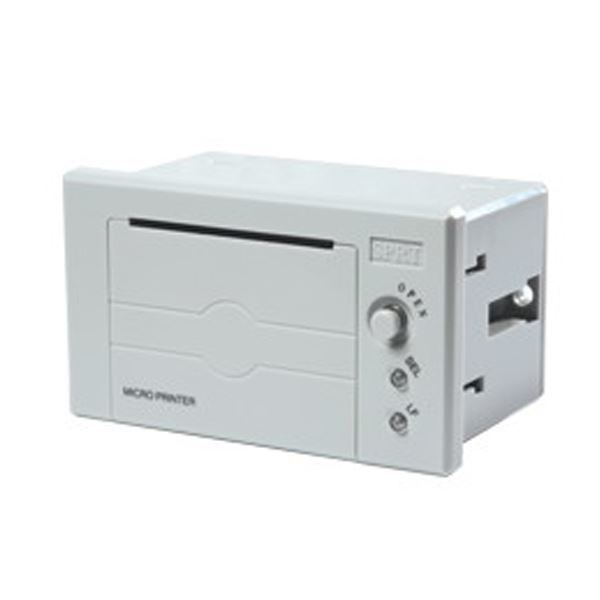

Micro Panel Printer

SP-RMDIVD VSH

پرینتر های تابلویی حرارتی با قابلیت اتصال به انواع میکرو و پی ال سی

دارای پورت سریال و TTL



Feature:

Easy paper loading

Low noise thermal printing

Support RS۲۳۲ or parallel interface

Wide voltage range

Easily embedded to any kinds of instruments and meters



Specification:

Printing Method

Thermal Line

Resolution

۸ dots/mm, ۳۸۴ dots/line

Effective Printing Width

۴۸mm

Printing Speed

۳۰mm/s

Character Set

ASCII, GB۱۸۰۳۰(Chinese), BIG۵, Codepage

Print Font

ANK: ۵ x ۷ Chinese: ۲۴ x ۲۴,۱۶x ۱۶

Self-defined Character

Yes

Graphic

Support bitmap downloading

Paper End Sensor

Yes

Overheating Protection

Yes

Interface

RS-۲۳۲/Parallel

Power Supply

DC۵V-۸.۵V, ۳A

TPH

۵۰km

Paper Type

Thermal paper

Paper Width

۵۷.۵± ۰.۵mm

Paper Thickness

۰.۰۶ to ۰.۰۸mm

Paper Roll Diameter

Max: ۴۰.۰mm

Paper Supply Method

Drop-in Easy Loading

Paper Cutting Method

Manual

Operating Temp/Humidity

۰-۵۰°C/۲۰%-۸۰%

Storage Temp/Humidity

-۲۰-۷۰°C / ۵%-۹۵%

Installation Port Size (L x W x H)

۱۰۳ x ۵۷ x ۶۲mm

Micro Panel Printer

SP-RMDIVD VSH

پرینتر های تابلویی حرارتی با قابلیت اتصال به انواع میکرو و پی ال سی

دارای پورت سریال و TTL



Feature:

Easy paper loading

Low noise thermal printing

Support RS۲۳۲ or parallel interface

Wide voltage range

Easily embedded to any kinds of instruments and meters



Specification:

Printing Method

Thermal Line

Resolution

۸ dots/mm, ۳۸۴ dots/line

Effective Printing Width

۴۸mm

Printing Speed

۳۰mm/s

Character Set

ASCII, GB۱۸۰۳۰(Chinese), BIG۵, Codepage

Print Font

ANK: ۵ x ۷ Chinese: ۲۴ x ۲۴,۱۶x ۱۶

Self-defined Character

Yes

Graphic

Support bitmap downloading

Paper End Sensor

Yes

Overheating Protection

Yes

Interface

RS-۲۳۲/Parallel

Power Supply

DC۵V-۸.۵V, ۳A

TPH

۵۰km

Paper Type

Thermal paper

Paper Width

۵۷.۵± ۰.۵mm

Paper Thickness

۰.۰۶ to ۰.۰۸mm

Paper Roll Diameter

Max: ۴۰.۰mm

Paper Supply Method

Drop-in Easy Loading

Paper Cutting Method

Manual

Operating Temp/Humidity

۰-۵۰°C/۲۰%-۸۰%

Storage Temp/Humidity

-۲۰-۷۰°C / ۵%-۹۵%

Installation Port Size (L x W x H)

۱۰۳ x ۵۷ x ۶۲mm
