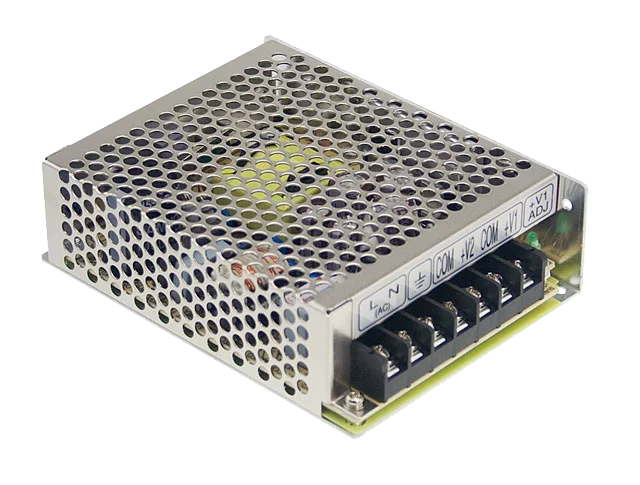

منبع تغذیه مینول، ۲۴ ولت، ۲/۲ آمپر سری RS
RS-50-24 Test Report
Meanwell power supply with an output voltage range of 20.78V to 28.07V for both 230VAC and 115VAC input
"Hello, welcome to read the article titled "Test Report for RS-50-24 Single Output Switching Power Supply." The document mainly talks about the output function test, input function test, protection function test, and environment test.
The ripple and noise specification for the output function test is V1: 120 mVp-p (Max) at an input of 230 VAC and full load, with a result of V1: 9 mVp-p (Max).
The input voltage range for the input function test is 88VAC to 264VAC.
In the over load protection test, the power supply performs within the specified range, with a result of 138% at 230VAC and 134% at 115VAC, operating in Hiccup Mode.
Ripple & Noise:
At input voltage of 230 VAC and full load, the maximum ripple and noise voltage is 120 mVp-p.
At a temperature of 25°C, the maximum ripple and noise voltage is 9 mVp-p.
Output Voltage Adjust Range:
The output voltage can be adjusted within the range of 22 V to 27.2 V when the input voltage is 230 VAC and 115 VAC, and the load is at a minimum.
Output Voltage Tolerance:
The output voltage tolerance is within ±1% to -1% at full load and with input voltages of 115 VAC and 264 VAC.
Line Regulation:
The line regulation for the power supply is within ±0.5% to -0.5% when the input voltage ranges from 115 VAC to 264 VAC at full load.
Load Regulation:
The load regulation is within ±0.5% to -0.5% when the input voltage is 230 VAC and the load varies from full to minimum load.
Set Up Time:
The power supply achieves its full load within 500 ms at 230 VAC input and 1200 ms at 115 VAC input, at a temperature of 25°C.
Rise Time:
The rise time for achieving full load is within 20 ms at 230 VAC input and 30 ms at 115 VAC input, at a temperature of 25°C.
Hold Up Time:
The hold up time at full load is approximately 50 ms at 230 VAC input and 10 ms at 115 VAC input, at a temperature of 25°C.
Over/Undershoot Test:
The power supply's over/undershoot is less than +5% at an input voltage of 230 VAC and full load.
Dynamic Load:
